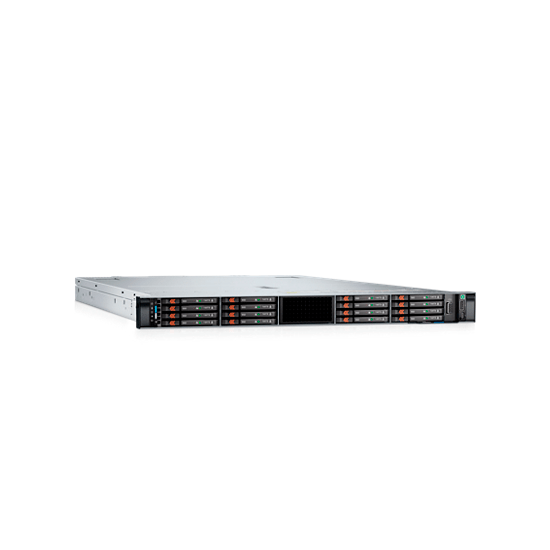

Dell PowerEdge R660

0.00

Base

Chassis Configuration

Processor

Processor Thermal Configuration

Memory Capacity

RAID/Internal Storage Controllers

Hard Drives

Hard Drives (2nd Group)

Hard Drives (PCIe SSD/Flex Bay)

Fans

Power Supply

Power Cords

PCIe Riser

OCP 3.0 Network Adapters

Additional Network Cards

NVMe and PCIe Storage Adapters

GPU/FPGA/Acceleration Cards

Bezel

Boot Optimized Storage Cards

Optics & Cables for Network Cards

Quick Sync

Rack Rails

Subtotal:

Add-ons total:

Total:

Weight: 22.51 kg
Volume: 0.017 m3
Shipping box dimensions (HxWxL): 4.28x48.2x82.29 cm
download as CSV

Technical Specification

Processors

  • Up to 2 × 4th Gen Intel Xeon Scalable or Intel Xeon Max (up to 56 cores, optional Intel® QuickAssist Technology)

  • Up to 2 × 5th Gen Intel Xeon Scalable (up to 64 cores)

Memory

  • 32 × DDR5 DIMM slots (RDIMM ECC only), up to 8 TB

  • Up to 4800 MT/s with 4th Gen Xeon / Xeon Max

  • Up to 5600 MT/s with 5th Gen Xeon

Storage Controllers

  • Internal RAID: PERC H965i, H755, H755N, H355i

  • External RAID: PERC H965e

  • Boot: BOSS-N1 (HW-RAID, 2 × M.2 NVMe SSD) or USB

  • SAS HBAs (non-RAID): HBA355e, HBA355i, HBA465i

  • Software RAID: S160

Drive Bays
Front

  • Up to 10 × 2.5″ SAS/SATA/NVMe — up to 153.6 TB

  • Up to 8 × 2.5″ SAS/SATA/NVMe — up to 122.88 TB

  • Up to 14 × EDSFF E3.S Gen5 NVMe — up to 179.2 TB

  • Up to 16 × EDSFF E3.S Gen5 NVMe — up to 204.8 TB

Rear

  • Up to 2 × 2.5″ SAS/SATA/NVMe — up to 30.72 TB

  • Up to 2 × EDSFF E3.S Gen5 NVMe — up to 25.6 TB

Power Supplies (hot-swap, redundant)

  • 1800 W Titanium, 200–240 V AC / 240 V HVDC

  • 1400 W Titanium, 277 V AC / 336 V HVDC

  • 1400 W Platinum, 100–240 V AC / 240 V HVDC

  • 1100 W Titanium, 100–240 V AC / 240 V HVDC

  • 1100 W DC (–48 to –60 V)

  • 800 W Platinum, 100–240 V AC / 240 V HVDC

  • 800 W DC (–48 to –60 V)

  • 700 W Titanium, 200–240 V HLAC / 240 V HVDC

Cooling

  • Standard air cooling

  • Optional Direct Liquid Cooling (DLC) — requires rack manifolds and CDU

  • Standard (STD) or Very High Performance (VHP) fans; up to 4 hot-plug dual-fan modules

Chassis

  • Form factor: 1 U rack server

  • Dimensions (H × W × D):

    • 42.8 mm × 482 mm × 822.9 mm (with bezel)

    • 42.8 mm × 482 mm × 809.0 mm (without bezel)

PCIe Expansion (up to 3 slots)

  • Slot 1: 1 × x16 Gen5 FH ¾-length / LP, or x8/x16 Gen5/Gen4 LP

  • Slot 2: 1 × x16 Gen5 FH ¾-length / LP, or x16 Gen5/Gen4 LP

  • Slot 3: 1 × x8/x16 Gen5/Gen4 LP

GPU Support

  • Up to 3 × single-width GPUs (75 W each)

Networking

  • 2 × 1 GbE LOM (optional)

  • 1 × OCP 3.0 NIC (optional)

    • LOM, OCP, or both may be installed

  • 1 × Management Interface Card (MIC) for Dell DPU (optional; mutually exclusive with OCP)

Ports
Front — iDRAC Direct (Micro-AB USB), USB 2.0, VGA
Rear — dedicated iDRAC RJ-45, USB 2.0, USB 3.0, (opt.) Serial, (opt.) VGA for DLC
Internal — (opt.) USB 3.0

Embedded Management

  • iDRAC9 (Direct, RESTful API/Redfish, Service Module, Quick Sync 2)

OpenManage Software

  • OpenManage Enterprise with Power Manager, Service, and Update Manager plug-ins

  • CloudIQ for PowerEdge

  • Integrations: VMware vCenter, Microsoft System Center, Windows Admin Center, OpenManage Mobile

Third-Party Integrations

  • BMC Truesight, ServiceNow, Red Hat Ansible Modules, Terraform Providers, VMware vRealize Operations Manager

Security

  • Cryptographically signed firmware, Secure Boot, Secure Erase

  • Silicon Root of Trust, Secured Component Verification

  • System Lockdown (requires iDRAC9 Enterprise/Datacenter)

  • Data-at-Rest Encryption (SEDs with local/external KMS)

  • TPM 2.0 (FIPS/CC-TCG or China NationZ)

Operating Systems / Hypervisors

  • Canonical Ubuntu Server LTS

  • Microsoft Windows Server (with Hyper-V)

  • Red Hat Enterprise Linux

  • SUSE Linux Enterprise Server

  • VMware ESXi
    (Full compatibility list at Dell.com/OSsupport)
